ELECTRONIC MICROSCOPY AND MATERIAL MICROANALYSIS

Equipment

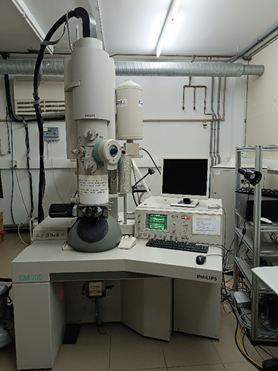

Equipment: Transmission electron microscope with lanthanum hexaboride filament and supertwin pole piece.

Brand: PHILIPS

Model: CM200

____________________________________________________________________________

Description: The Philips CM200 can be used in TEM and STEM mode, for crystallographic investigations and to determine chemical composition in STEM mode via EDS, either in quantitative spot measurements or qualitative area scans.

____________________________________________________________________________

Applications:

  • EDAX EDX detector with 137 eV resolution (point microanalysis).
  • Two double-tilted sample holders, one with a grip and the other with a screw.
  • Two simple tilt sample holders, one of them made of Be for microanalysis.
  • A Megaview III digital camera for quick acquisition.
  • An inferior digital camera with high resolution (4Kx4K) and high sensitivity.

____________________________________________________________________________

Technical specifications:

  • Point-to-point resolution of 0.235nm and maximum inclination of ±40º

_____________________________________________________________________

Responsible(s):

  • Sergio Fernandez

Location:

  • Faculty of Science and Technology
  • Sarriena neighborhood s/n. 48940. Leioa. Bizkaia.

_____________________________________________________________________

Contact:

Service technician
